Optos California

Comprehensive Retinal Imaging with Unparalleled Clarity

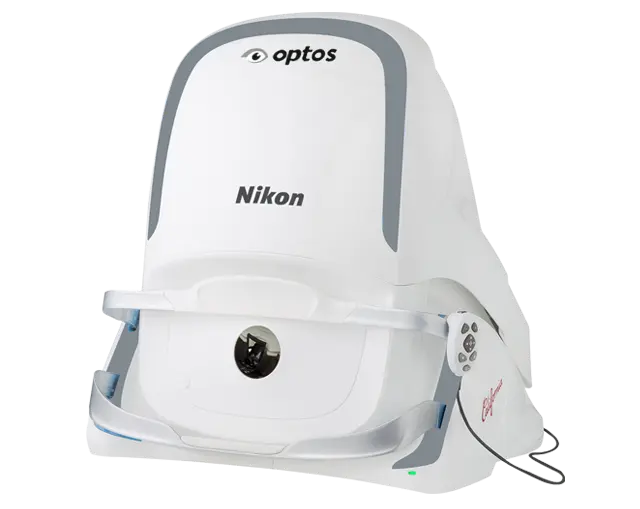

The Optos California is a state-of-the-art ultra-widefield (UWF™) retinal imaging system designed to capture up to 200° or 82% of the retina in a single image. Utilizing advanced confocal scanning laser ophthalmoscopy (cSLO) technology, it provides high-resolution images through small pupils and media opacities, facilitating early detection and management of various retinal conditions.

Ultra-Widefield Imaging

200° Single-Capture Retinal Image: Captures comprehensive retinal view in less than 0.4 seconds, enabling visualization of peripheral retinal pathology.

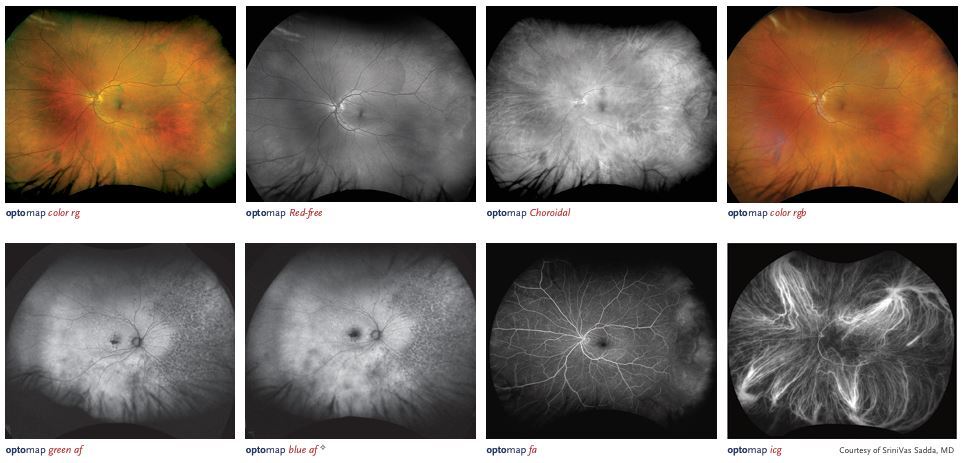

Multi-Modal Imaging Capabilities

Color Composite Imaging: Supports RG and RGB color composite imaging for detailed visualization.
Advanced Imaging Modes: Includes Red-free, Choroidal, Autofluorescence (green and blue) imaging options.
Angiography Support: Fluorescein angiography (FA) and Indocyanine green angiography (ICG) capabilities.

Enhanced Workflow and Integration

Compact Design: Features a tabletop design with motorized head and chin rest for patient comfort.
Browser-Based Review Platform: Allows easy access and integration into existing systems.
DICOM Compatibility: Ensures seamless communication with electronic health records.

Technical Specifications

Resolution: Optomap Plus: 14 μm; Optomap: 20 μm
Wavelengths: Red laser: 635 nm, Green laser: 532 nm, Blue laser: 488 nm, Infrared laser: 802 nm
Physical Specifications: Dimensions: 550mm x 550mm x 608-632mm, Weight: 34 kg, Power: 100-120V or 200-240V at 50/60Hz, Max consumption: 300 VA

The Optos California is an essential tool for eye care professionals seeking to elevate their diagnostic precision and patient care standards, providing comprehensive retinal imaging that captures peripheral pathology often missed by traditional imaging systems.
